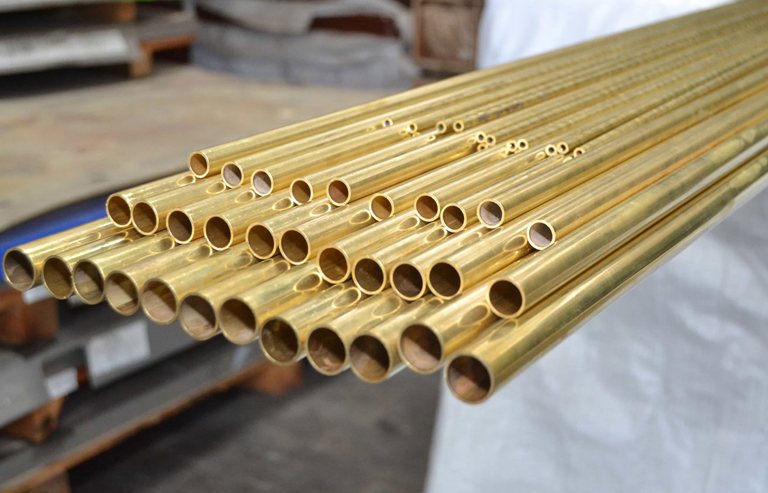

70/30 Brass Tubes
Jaydeep Tubes Pvt. Ltd is one of the leading and well-reputed Manufacturer and Supplier of Brass Tube 70/30. We are Providing Brass Tube 70/30 in Diverse Specifications and Grades to fulfill the needs and various requirements of the Clients. The 70/30 Brass Tubing that are Manufacturerd from Brass are also known as ‘Sugar Brass Tubes.’ These Tubes can be applicable in Various Specifications, and they are also Tailor-Made to meet Specific Needs. As a Comparison with Zinc or Bronze Metal, the Malleability of 70/30 Brass is Much Higher.
Brass can be Made into Soft as well as Hard Brasses, by varying the Quantities of Zinc and Copper in it. Based on the Composition of Administration, it has a Shallow Melting Point. As such, Brass is an Excellent Material to Cast. Brass 70/30 Tubes are Made from the most typical type of Alpha Brass, and this Brass type Contains Copper and Zinc Content on it. Brass Tubes 70/30 is just an idea for Cold Working. The Brass of this type is having Higher Resistance to Corrosion, as Compared to Brass, Which has a more Significant Amount of Zinc in it. 70/30 Brass is used to Make things such as Wood Screws, Fasteners, Electrical Sockets, Spring Contacts, etc. We, Jaydeep Tubes Pvt. Ltd, are Manufacturing these Brass Tubes 70/30 by Maintaining the Specific Quantity and Quality to Provide the best features to our Customers. We, Jaydeep Tubes Pvt. Ltd, are Manufacturing these Brass Tubes 70/30 by using the High Quality of Raw Material and Guidelines from our Expert Team Members to make the best Brass Tubes so that it can be easily used by Several Industries as well as Commercial Purpose. Our expert Team Members are much Knowledgeable and having very vast experience in Manufacturing these Brass Tubes 70/30. We are following International and National Specifications and Standards for making these Tubes.
Product Application Areas:
Sugar Industry, Plumbing , Furniture , General Engineering , Ammunition , Bore Hole Tubes
Od Size Range:
4 to 60mm
Thickness Range:
0.3 to 10mm
70-30 Brass Tubes:
| Standard | Symbol |
|---|---|
| ASTM B 135 | C 26000 |
| BS 2871 Part 3 | CZ 126 |
| EN 12451 | CuZN30As |
| NFA 51 102 | CuZN30 |
| JIS H 3300 | C 2600 |
| IS 1545 | CU 2n30AS |
Testing Done On Tubes
Maximum Pressure Work
P = Maxium work pressure(psi)- S = Minimum tensile strength of material for a specific temper(It is the value of the tensile strength in psi in Mechanica properties table)
- D = Exterior diameter of tube
- T = Wall thickness of tube
- P = (2T x S)/5D
Non Destructive Tests
- Eddy Current Testing
- Hydrostatic Testing
- Air Underwater Testing
- Ultrasonic Testing
- (PMI) Positive Material Identification
Destructive Tests
- Microstructure Test
- Tensile Test
- Flattening Test
- Expansion Test
- Optical Spectrometry Test
- Ammonia Vapor Test
| Materials | Grades | Product Symbol | Cu | Su | Zn | Pb | Ni | Fe | As | P | Min | AI |
| 70/30 Brass Tubes | ASTM B -135 | C 26000 | 68.5-71.5 | - | Remainder | 0.07 | - | 0.05 | - | - | - | - |
