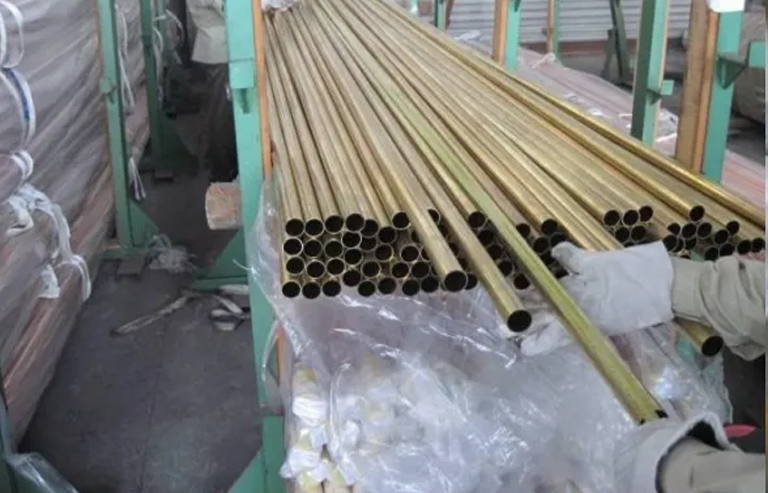

Admiralty Brass Tubes
We are the Distributor and Manufacturer of Admiralty Brass Tubes. We Provide Premium Quality Tubes at reasonable rates. We Produce a wide range of Admiralty Brass Tubes, which are required to Complete various Industrial applications. We Produce these Tubes according to our client's requirements with zero error, Dimensional accuracy, and Excellent Quality. We have readily Maintained Stocks to fulfilling clients' needs within minimum time. We never Compromise in Quality. We are Supplying Satisfying Quality Tubes as per the requirements of our esteem Clients.
Admiralty Brass Tubes is specially used for its Tubing applications. It is Copper-Zinc Alloy Containing a small amount of arsenic and tin as well. This Material has excellent resistance Properties in the Sulphur Compound and Contaminated water. It is used for Supplying Sea Water, Polluted River Water, and Fresh Water. Admiralty Brass Tubes has good Corrosion Resistance Quality, which Makes them Suitable to use in Various environments. This Makes it durable and works Correctly in Many Complex Industrial Applications.Our High-Grade Tubes has excellent Ductility, Conductivity and also withstand Higher Temperature. It offers Versatility Fittings in a variety like Pluming, Connecting Small Networks, and many more. Our precise Admiralty Brass Tubes has numerous beneficial features which are Suitable to use in Steam Condenser Cooled, Brackish Water, Marine Appliance, Heat Exchangers in Refineries. These Tubes are also demanded to use in Petrochemicals and Power Plants. Admiralty Brass Tubes is available in different sizes and specifications. We offer these Tubes as per the requirements given by our esteem Clients.
Product Application Areas:
HEAT Exchangers, Refineries Power Plants, Desalination Plants, Ship Building & Ship Reapirs, Condeners, Ferrules , Distillers
Guid To Selection Of Tube Material:
River or Sea Water:
- Dissolved salts more than 2000ppm.
- Chloride less than 20ppm.
- H2S and Amminia is less than 25 ppm.
- Suspended solids less than 25 ppm.
- For temprature more than 200 degree C and less than 450 degree C.
Permissible average velocity of water 1.8 - 2.0 meter/sec
Od Size Range:
4 to 80mm
Thickness Range:
0.3 to 8.8mm
Admiralty Brass Tubes:
| Standard | Symbol |
|---|---|
| ASTM B 111 | C 68700 |
| BS 2871 Part 3 | CN 110 |
| EN 12451 | CuZN20 AL2 |
| NFA 51 102 | CuZN22 AL2 |
| IS 1545 | Cu2n29Sn/AS |
Testing Done On Tubes
Maximum Pressure Work
P = Maxium work pressure(psi)- S = Minimum tensile strength of material for a specific temper(It is the value of the tensile strength in psi in Mechanica properties table)
- D = Exterior diameter of tube
- T = Wall thickness of tube
- P = (2T x S)/5D
Non Destructive Tests
- Eddy Current Testing
- Hydrostatic Testing
- Air Underwater Testing
- Ultrasonic Testing
- (PMI) Positive Material Identification
Destructive Tests
- Microstructure Test
- Tensile Test
- Flattening Test
- Expansion Test
- Optical Spectrometry Test
- Ammonia Vapor Test
| Materials | Grades | Product Symbol | Cu | Su | Zn | Pb | Ni | Fe | As | P | Min | AI |
| Admiralty Brass Tubes | ASTM B -111 | C 44300 | 70-73 | 9-1.2 | Remainder | 0.07 | - | 0.06 | .02-06 | - | - | - |
