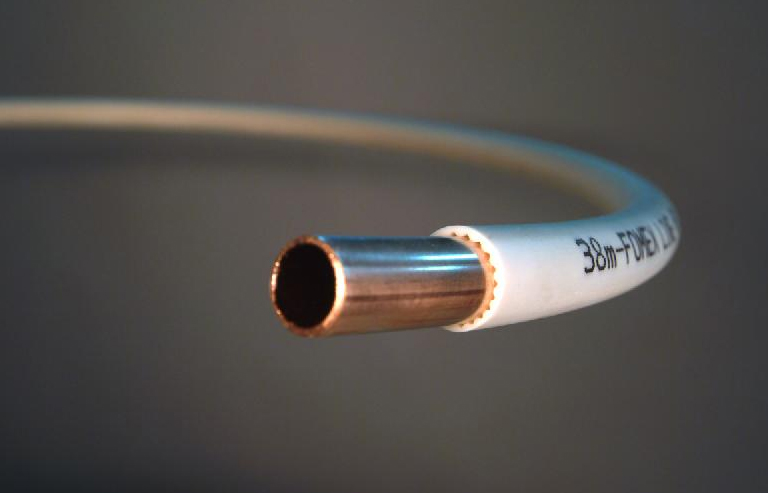

PVC Coated Copper Tubes

Jaydeep Tubes Pvt. Ltd. Manufacture High Quality PVC Coated Copper Tubes & Copper Coils designed for Protection against aggressive environment and Colour Coded to Aid Identification. Copper Tube with a PVC sheath may be an effective Method of Protection against attack in harsh operating Conditions.

The PVC is Tightly Extruded onto the Tube and is Available in Black, White, Blue, Yellow and green colours according to customer requirements. Material used to coat copper tubes is Polyvinylchloride (PVC) of the following Characteristics.

Copper Tubes meet the Specifications of International Standards Like ASTM-B-75/68 and UNS C12200. Tests are Conducted as per Secification for Physical & Mechanical Properties & Chemical Composition. ECT is Conducted for Bare Tubes. Finally, PVC Coating is done as per ASTM-D-1047. PVC Coated Tube is ensured Leak Proof after Conducting Pressure Drop Test.

Product Application Areas:

LPG gas kits, Oils & Gas Industries , Instrumentations Industries Plumbing & Drainage

Alloys: Copper Tubes

Related Standards: ASTM B 68 / 75 with PVC coating as per ASTM D 1047

Size Range: OD 4.76mm to 19.00mm WT:0.30mm TO 1.50mm
